addStructuredDocumentTag

addStructuredDocumentTag

BASIC / ADVANCED / PREMIUM

Inserts different types of Structured Document Tags into the Word document.

Description
public void addStructuredDocumentTag(String type)
public void addStructuredDocumentTag(String type, OptionsStructuredDocumentTag options)

This method allows to insert structured document tags (sdt) of various kinds into your Word document:

  • checkboxes
  • combo boxes
  • date pickers
  • dropdown lists
  • rich text
Parameters

type

Possible values are:

  • checkbox
  • comboBox
  • date
  • dropdownList
  • richText

For a detailed description of the available date formats for the date picker structured document tag, please, check the documentation of the addDateAndHour method.

options

Option Type Description
alias String The label that will be shown in the structured document tag.
calendar String Calendar type. Default type is gregorian. Possible values include: gregorian, hijri, hebrew, taiwan, japan, thai, korea, saka, gregorianXlitEnglish, gregorianXlitFrench.
checked Boolean Set checkboxes as checked or unchecked.
dateFormat String The default date format is M/d/yyyy. See addDateAndHour for available date formats.
listItems HashMap<String, String> A HashMap containing the text to show and value.
local String ISO code. The default value is en-US.
lock String Locking properties:
  • sdtLocked (cannot be deleted).
  • contentLocked (contents can not be edited directly).
  • unlocked (default value: no locking).
  • sdtContentLocked (contents can not be directyly edited or the structured tag removed).
placeholderText String Text to be shown by default.
tag String A programmatic tag.
temporary Boolean If true the structured tag is removed after editing.
Option Type Description
pStyle String Word style to be used.
backgroundColor String Hexadecimal color value: FF0000, 000000...
bidi Boolean Sets to true for right to left languages like Hebrew or Arabic.
bold Boolean If true the text will be shown in bold characters.
border String Available values are:
  • none (default)
  • double
  • dashed
  • outset
  • inset
  • threeDEmboss
  • threeDEngrave
borderBottom String Overwrites the general border type for the bottom border of the paragraph.
borderLeft String Overwrites the general border type for the left border of the paragraph.
borderTop String Overwrites the general border type for the top border of the paragraph.
borderRight String Overwrites the general border type for the right border of the paragraph.
borderColor String Hexadecimal color value: FF0000, 000000...
borderBottomColor String Overwrites the general border color for the bottom border of the paragraph.
borderLeftColor String Overwrites the general border color for the left border of the paragraph.
borderTopColor String Overwrites the general border color for the top border of the paragraph.
borderRightColor String Overwrites the general border color for the right border of the paragraph.
borderSpacing Integer Separation between border and text in points.
borderBottomSpacing Integer Overwrites the general border spacing for the bottom border of the paragraph.
borderLeftSpacing Integer Overwrites the general border spacing for the left border of the paragraph.
borderTopSpacing Integer Overwrites the general border spacing for the top border of the paragraph.
borderRightSpacing Integer Overwrites the general border spacing for the right border of the paragraph.
borderWidth Integer Border width in eigths of a point.
borderBottomWidth Integer Overwrites the general border width for the bottom border of the paragraph.
borderLeftWidth Integer Overwrites the general border width for the left border of the paragraph.
borderTopWidth Integer Overwrites the general border width for the top border of the paragraph.
borderRightWidth Integer Overwrites the general border width for the right border of the paragraph.
caps Boolean If true displays text in capital letters.
color String Hexadecimal color value: "FF0000", "000000"...
contextualSpacing String Ignores spacing above and below the paragraph whenever the neighbouring paragraphs use the same Word style.
doubleStrikeThrough Boolean If true displays text in doubleStrikeThrough.
em String Emphasis mark type: "none", "dot", "circle", "comma", "underDot".
firstLineIndent Integer First line indentation in twentieths of a point (twips).
font String Font family: "Arial", "Calibri"...
fontSize Integer Font size in points.
hanging Integer Paragraph hanging in twentieths of a point (twips).
headingLevel Integer The heading level if you want this paragraph to be a heading.
italic Boolean If true displays the text in italics.
indentLeft Integer Left margin in points.
indentRight Integer Right margin in points.
keepLines Boolean Keeps (whenever possible) all the current paragraph lines on the same page (default value is false).
keepNext Boolean Keeps (whenever possible) in the same page the current paragraph with next paragraph (default value is false).
lineSpacing Integer 120, 240 (standard), 360, 480... (in twentieths of a point).
pageBreakBefore Boolean If true forces a page break before the paragraph.
primaryStyle Boolean If true sets as primary style.
position Integer Position value. Positive value for raised and negative value for lowered.
rtl Boolean Sets to true for right to left languages like Hebrew or Arabic.
scaling Integer Scaling value, 100 is the default value.
semiHidden Boolean If true sets as semihidden style.
smallCaps Boolean If true displays text in small capital letters.
spacingBottom Integer Bottom padding in twentieths of a point.
spacingTop Integer Top padding in twentieths of a point.
strikeThrough Boolean If true displays text in strikethrough.
tabPositions ArrayList<HashMap<String, String>> Each entry is a HashMap array with the following keys and values:
  • type can be clear, left (default), center, right, decimal, bar and num.
  • leader can be none (default), dot, hyphen, underscore, heavy and middleDot.
  • position given in twentieths of a point.
textAlign String Text alignment within paragraph. Possible values are: center, right, both and distribute.
textDirection String Text flow direction within a table cell. Possible values are: lrTb, tbRl, btLr, lrTbV, tbRlV and tbLrV.
underline String Underlines text. Possible values are: single, words, double, dotted, dash and wave.
underlineColor String Underlines text with a color: "FF0000", "000000"...
vanish Boolean Uses a vanish style.
widowControl Boolean Prevents Word from printing the last line of a paragraph by itself at the top of the page (widow) or the first line of a paragraph at the bottom of a page (orphan).
wordWrap Boolean Allows line breaking at character level (default value is false).
Code samples

Example #1

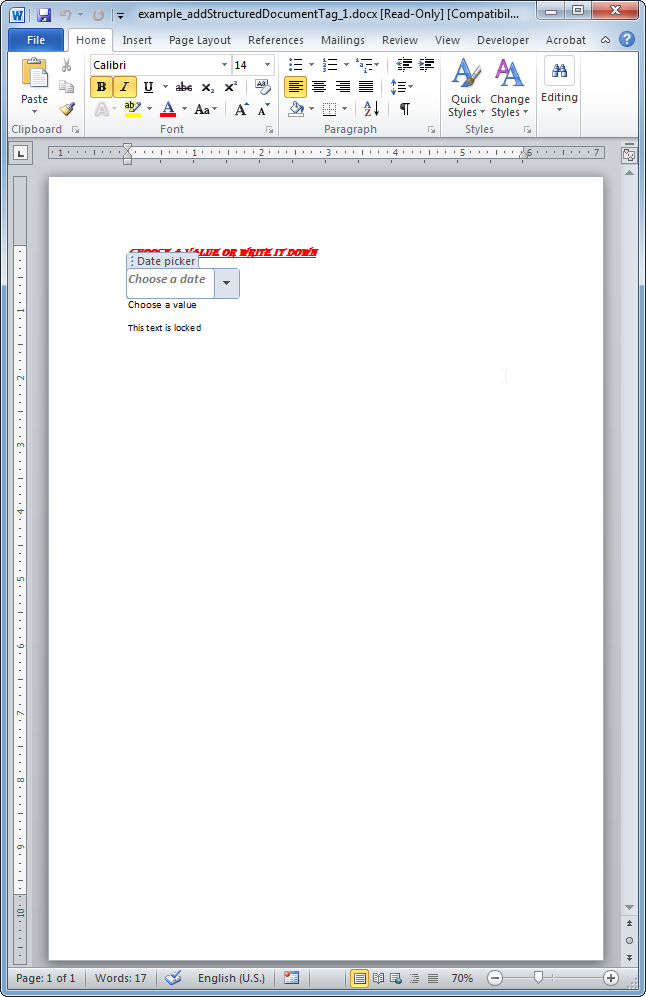

The resulting Word document looks like:
