addShape

addShape

BASIC / ADVANCED / PREMIUM

Inserts different types of shapes into a Word document.

Description
public void addShape(String type, OptionsShape options)

This method inserts a shape into your Word document.

The available types include:

  • arcs of a circle (filled or not)
  • bezier curves (filled or not)
  • straight lines
  • polylines
  • rectangles
  • rectangles with rounded corners
  • arbitrary shapes (VML paths)
  • ovals
Parameters

type

arc, curve, line, polyline, rect, roundrect, shape, oval.

options

Option Type Description
width Integer Shape width given in points.
height Integer Shape height given in points.
position String The possible values are: absolute, relative.
marginTop Integer The possible values are: absolute, relative.
marginLeft Integer Left margin given in points.
zIndex Integer Equivalent to the CSS z-index property. Choose a high positive number to make sure that the shape is over the text or a negative number if you want the shape to be behind the text.
strokeColor String The chosen line color in hexadecimal value: #ff0000, #00ffff.
strokeWeight Double The width of the line in points: 1.0 pt, 3.5 pt...
fillColor String The chosen fill color in hexadecimal value: #ff0000, #00ffff.
textContent WordFragment Text content to be added into the shape.

Options for specific types:

Option Type Description
arc
startAngle Integer The angle of the tangent line at the initial point of the arc.
endAngle Integer The angle of the tangent line at the final point of the arc.
line and curve
from String The x and y coordinates of the initial point in the format "x,y".
to String The x and y coordinates of the final point in the format "x,y".
control1 String The final control point for the bezier curve (it does not apply for plain lines) in the format "x,y".
control2 String The final control point for the bezier curve (it does not apply for plain lines) in the format "x,y".
roundrect
arcsize Double A number describing the "roundness" of the rectangle corners: 0.5, 1.8, …y".
shape
path String The VML path describing the shape. You need a working knowledge of the VML standard.
coordsize String The VML path describing the shape. You need a working knowledge of the VML standard.
Code samples

Example #1

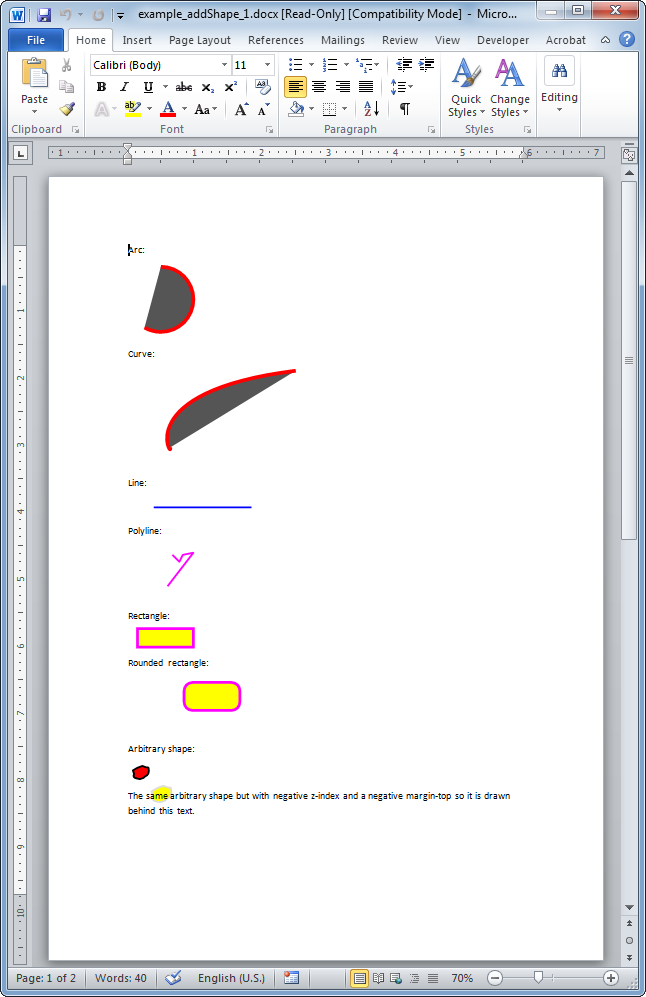

The resulting Word document looks like:
