createTableStyle

Option	Type	Description
border	String	Border type: none, single, double, dashed, threeDEngrave, threeDEmboss, outset, inset... This value can be overridden for each side with the use 'borderTop', 'borderRight', 'borderBottom' and 'borderLeft' properties.
borderColor	String	Hexadecimal color value: 'FF0000', '000000'... This value can be overridden for each side with the use of 'borderTopColor', 'borderRightColor', 'borderBottomColor' and 'borderLeftColor' properties.
borderSpacing	Integer	Border spacing in points. This value can be overridden for each side with the use of 'borderTopSpacing', 'borderRightSpacing', 'borderBottomSpacing' and 'borderLeftSpacing' properties.
borderWidth	Integer	Border size in eigths of a point. This value can be overridden for each side with the use of 'borderTopWidth', 'borderRightWidth', 'borderBottomWidth' and 'borderLeftWidth' properties.
cellMargin	Integer	The values are given in twentieths of a point.
hidden	Boolean	Hide style from user interface.
indent	Integer	Table indentation. The value is given in twentieths of a point.
locked	Boolean
pPrStyles	OptionsParagraphStyle	Paragraph styles to be applied.
rPrStyles	OptionsCharacterStyle	Character styles to be applied.
semiHidden	Boolean	Hide style from main user interface.
tableStyle	string	Id of the style this table style is based on (it may be retrieved with the parseStyles method).
tblStyleColBandSize	Boolean	Column banded style.
tblStyleRowBandSize	Boolean	Row banded style.
unhideWhenUsed	Boolean	Remove semi-hidden property when style is used.
band1HorzStyle	OptionsTableStylePr	Set odd rows styles using border, borderColor, borderSpacing, borderWidth, backgroundColor, vAlign, rPrStyles, pPrStyles properties.
band1VertStyle	OptionsTableStylePr	Sets odd cols styles using border, borderColor, borderSpacing, borderWidth, backgroundColor, vAlign, rPrStyles, pPrStyles properties.
band2HorzStyle	OptionsTableStylePr	Sets even rows styles using border, borderColor, borderSpacing, borderWidth, backgroundColor, vAlign, rPrStyles, pPrStyles properties.
band2VertStyle	OptionsTableStylePr	Sets even cols styles using border, borderColor, borderSpacing, borderWidth, backgroundColor, vAlign, rPrStyles, pPrStyles properties.
firstColStyle	OptionsTableStylePr	Sets first column styles using border, borderColor, borderSpacing, borderWidth, backgroundColor, vAlign, rPrStyles, pPrStyles properties.
firstRowStyle	OptionsTableStylePr	Sets first row styles using border, borderColor, borderSpacing, borderWidth, backgroundColor, vAlign, rPrStyles, pPrStyles properties.
lastColStyle	OptionsTableStylePr	Sets last col styles using border, borderColor, borderSpacing, borderWidth, backgroundColor, vAlign, rPrStyles, pPrStyles properties.
lastRowStyle	OptionsTableStylePr	Sets last row styles using border, borderColor, borderSpacing, borderWidth, backgroundColor, vAlign, rPrStyles, pPrStyles properties.
neCellStyle	OptionsTableStylePr	Sets top right styles using border, borderColor, borderSpacing, borderWidth, backgroundColor, vAlign, rPrStyles, pPrStyles properties.
nwCellStyle	OptionsTableStylePr	Sets top left styles using border, borderColor, borderSpacing, borderWidth, backgroundColor, vAlign, rPrStyles, pPrStyles properties.
seCellStyle	OptionsTableStylePr	Sets bottom right styles using border, borderColor, borderSpacing, borderWidth, backgroundColor, vAlign, rPrStyles, pPrStyles properties.
swCellStyle	OptionsTableStylePr	Sets bottom left styles using border, borderColor, borderSpacing, borderWidth, backgroundColor, vAlign, rPrStyles, pPrStyles properties.

Code samples

Example #1

package examples.LayoutAndGeneral.createTableStyle;

import java.util.ArrayList;

import com.javadocx.CreateDocx;
import com.javadocx.WordFragment;
import com.javadocx.elements.*;

public class Sample1 {
    public static void main(String[] args) throws Exception {
        CreateDocx docx = new CreateDocx();

        OptionsTableStyle tableStyleOptions = new OptionsTableStyle();
        tableStyleOptions.setBorderColor("00FF00")
                         .setBorderTopWidth(24)
                         .setBorderBottomWidth(24)
                         .setBorderLeftColor("0000FF")
                         .setBorderRightColor("0000FF")
                         .setBorderInsideH("nil")
                         .setBorderInsideV("dashed")
                         .setBorderInsideHColor("FF0000")
                         .setBorderInsideVColor("FF0000")
                         .setCellMarginTop(400)
                         .setCellMarginLeft(150);

        docx.createTableStyle("myTableStyle", tableStyleOptions);

        ArrayList<OptionsTableData> valuesRow1 = new ArrayList<OptionsTableData>();

        OptionsTableData valuesRow1Cell1 = new OptionsTableData();
        WordFragment textFragmentRow1Cell1 = new WordFragment(docx);
        textFragmentRow1Cell1.addText("11");
        valuesRow1Cell1.setValue(textFragmentRow1Cell1);

        OptionsTableData valuesRow1Cell2 = new OptionsTableData();
        WordFragment textFragmentRow1Cell2 = new WordFragment(docx);
        textFragmentRow1Cell2.addText("12");
        valuesRow1Cell2.setValue(textFragmentRow1Cell2);

        OptionsTableData valuesRow1Cell3 = new OptionsTableData();
        WordFragment textFragmentRow1Cell3 = new WordFragment(docx);
        textFragmentRow1Cell3.addText("13");
        valuesRow1Cell3.setValue(textFragmentRow1Cell3);

        OptionsTableData valuesRow1Cell4 = new OptionsTableData();
        WordFragment textFragmentRow1Cell4 = new WordFragment(docx);
        textFragmentRow1Cell4.addText("14");
        valuesRow1Cell4.setValue(textFragmentRow1Cell4);

        valuesRow1.add(valuesRow1Cell1);
        valuesRow1.add(valuesRow1Cell2);
        valuesRow1.add(valuesRow1Cell3);
        valuesRow1.add(valuesRow1Cell4);

        ArrayList<OptionsTableData> valuesRow2 = new ArrayList<OptionsTableData>();

        OptionsTableData valuesRow2Cell1 = new OptionsTableData();
        WordFragment textFragmentRow2Cell1 = new WordFragment(docx);
        textFragmentRow2Cell1.addText("21");
        valuesRow2Cell1.setValue(textFragmentRow2Cell1);

        OptionsTableData valuesRow2Cell2 = new OptionsTableData();
        WordFragment textFragmentRow2Cell2 = new WordFragment(docx);
        textFragmentRow2Cell2.addText("22");
        valuesRow2Cell2.setValue(textFragmentRow2Cell2);

        OptionsTableData valuesRow2Cell3 = new OptionsTableData();
        WordFragment textFragmentRow2Cell3 = new WordFragment(docx);
        textFragmentRow2Cell3.addText("23");
        valuesRow2Cell3.setValue(textFragmentRow2Cell3);

        OptionsTableData valuesRow2Cell4 = new OptionsTableData();
        WordFragment textFragmentRow2Cell4 = new WordFragment(docx);
        textFragmentRow2Cell4.addText("24");
        valuesRow2Cell4.setValue(textFragmentRow2Cell4);

        valuesRow2.add(valuesRow2Cell1);
        valuesRow2.add(valuesRow2Cell2);
        valuesRow2.add(valuesRow2Cell3);
        valuesRow2.add(valuesRow2Cell4);

        ArrayList<OptionsTableData> valuesRow3 = new ArrayList<OptionsTableData>();

        OptionsTableData valuesRow3Cell1 = new OptionsTableData();
        WordFragment textFragmentRow3Cell1 = new WordFragment(docx);
        textFragmentRow3Cell1.addText("31");
        valuesRow3Cell1.setValue(textFragmentRow3Cell1);

        OptionsTableData valuesRow3Cell2 = new OptionsTableData();
        WordFragment textFragmentRow3Cell2 = new WordFragment(docx);
        textFragmentRow3Cell2.addText("32");
        valuesRow3Cell2.setValue(textFragmentRow3Cell2);

        OptionsTableData valuesRow3Cell3 = new OptionsTableData();
        WordFragment textFragmentRow3Cell3 = new WordFragment(docx);
        textFragmentRow3Cell3.addText("33");
        valuesRow3Cell3.setValue(textFragmentRow3Cell3);

        OptionsTableData valuesRow3Cell4 = new OptionsTableData();
        WordFragment textFragmentRow3Cell4 = new WordFragment(docx);
        textFragmentRow3Cell4.addText("34");
        valuesRow3Cell4.setValue(textFragmentRow3Cell4);

        valuesRow3.add(valuesRow3Cell1);
        valuesRow3.add(valuesRow3Cell2);
        valuesRow3.add(valuesRow3Cell3);
        valuesRow3.add(valuesRow3Cell4);

        ArrayList<ArrayList<OptionsTableData>> valuesTable = new ArrayList<ArrayList<OptionsTableData>>();
        valuesTable.add(valuesRow1);
        valuesTable.add(valuesRow2);
        valuesTable.add(valuesRow3);

        OptionsTableProperties tableProperties = new OptionsTableProperties();
        tableProperties.setTableStyle("myTableStyle");

        docx.addTable(valuesTable, tableProperties);

        docx.createDocx("output");
    }
}

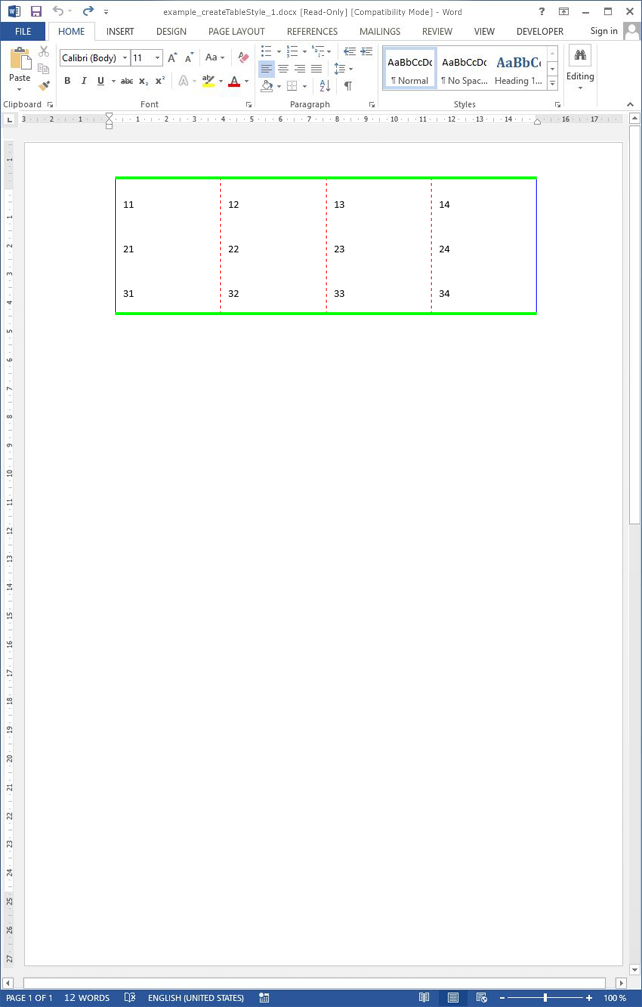

The resulting Word document looks like:

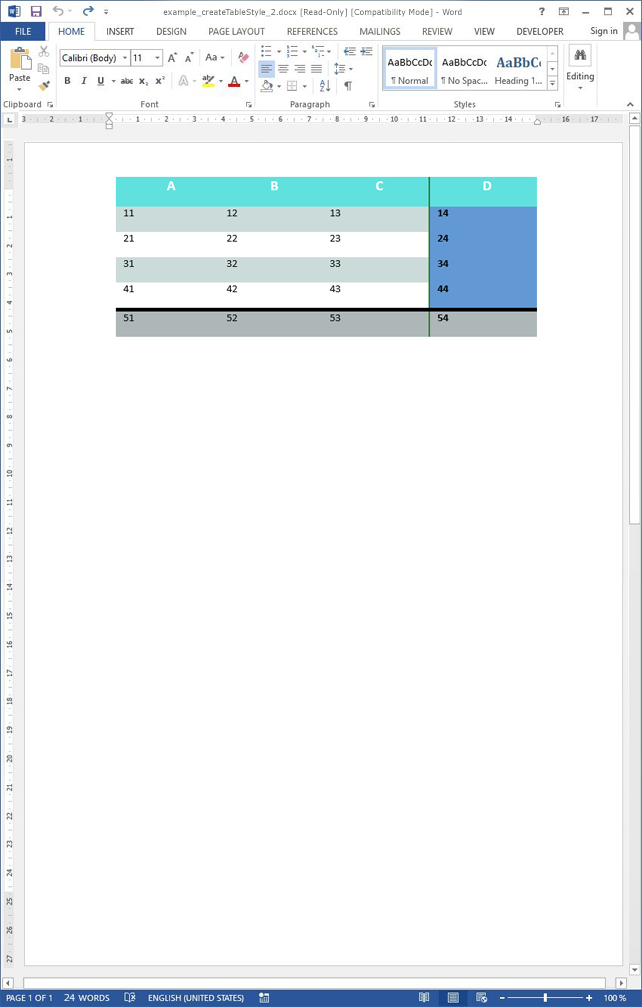

Example #2

package examples.LayoutAndGeneral.createTableStyle;

import java.util.ArrayList;
import java.util.HashMap;

import com.javadocx.CreateDocx;
import com.javadocx.WordFragment;
import com.javadocx.elements.*;

public class Sample2 {
    public static void main(String[] args) throws Exception {
        CreateDocx docx = new CreateDocx();

        OptionsParagraphStyle pPrStyles = new OptionsParagraphStyle();
        pPrStyles.setIndentLeft(150);

        OptionsTableStylePr firstRowStyle = new OptionsTableStylePr();
        firstRowStyle.setBackgroundColor("60E1DE")
                     .setvAlign("center");

        OptionsTableStylePr lastRowStyle = new OptionsTableStylePr();
        lastRowStyle.setBackgroundColor("AEB7B7")
                     .setBorderTopWidth(30);

        OptionsTableStylePr band1HorzStyle = new OptionsTableStylePr();
        band1HorzStyle.setBackgroundColor("CBDBDA");

        OptionsCharacterStyle rPrStyles = new OptionsCharacterStyle();
        rPrStyles.setBold(true);

        OptionsTableStylePr lastColStyle = new OptionsTableStylePr();
        lastColStyle.setBorderLeftColor("2F812F")
                    .setBorderLeftWidth(12)
                    .setBackgroundColor("6299D4")
                    .setrPrStyles(rPrStyles);

        OptionsTableStyle tableStyleOptions = new OptionsTableStyle();
        tableStyleOptions.setTblStyleRowBandSize(true)
                         .setpPrStyles(pPrStyles)
                         .setFirstRowStyle(firstRowStyle)
                         .setLastRowStyle(lastRowStyle)
                         .setBand1HorzStyle(band1HorzStyle)
                         .setLastColStyle(lastColStyle);

        docx.createTableStyle("myTableStyle", tableStyleOptions);

        ArrayList<OptionsTableData> valuesRow1 = new ArrayList<OptionsTableData>();

        OptionsParagraph paragraphOptions = new OptionsParagraph();
        paragraphOptions.setTextAlign("center")
                        .setColor("FFFFFF")
                        .setBold(true)
                        .setFontSize(14);

        OptionsTableData valuesRow1Cell1 = new OptionsTableData();
        WordFragment textFragmentRow1Cell1 = new WordFragment(docx);
        textFragmentRow1Cell1.addText("A", paragraphOptions);
        valuesRow1Cell1.setValue(textFragmentRow1Cell1);

        OptionsTableData valuesRow1Cell2 = new OptionsTableData();
        WordFragment textFragmentRow1Cell2 = new WordFragment(docx);
        textFragmentRow1Cell2.addText("B", paragraphOptions);
        valuesRow1Cell2.setValue(textFragmentRow1Cell2);

        OptionsTableData valuesRow1Cell3 = new OptionsTableData();
        WordFragment textFragmentRow1Cell3 = new WordFragment(docx);
        textFragmentRow1Cell3.addText("C", paragraphOptions);
        valuesRow1Cell3.setValue(textFragmentRow1Cell3);

        OptionsTableData valuesRow1Cell4 = new OptionsTableData();
        WordFragment textFragmentRow1Cell4 = new WordFragment(docx);
        textFragmentRow1Cell4.addText("D", paragraphOptions);
        valuesRow1Cell4.setValue(textFragmentRow1Cell4);

        valuesRow1.add(valuesRow1Cell1);
        valuesRow1.add(valuesRow1Cell2);
        valuesRow1.add(valuesRow1Cell3);
        valuesRow1.add(valuesRow1Cell4);

        ArrayList<OptionsTableData> valuesRow2 = new ArrayList<OptionsTableData>();

        OptionsTableData valuesRow2Cell1 = new OptionsTableData();
        WordFragment textFragmentRow2Cell1 = new WordFragment(docx);
        textFragmentRow2Cell1.addText("11");
        valuesRow2Cell1.setValue(textFragmentRow2Cell1);

        OptionsTableData valuesRow2Cell2 = new OptionsTableData();
        WordFragment textFragmentRow2Cell2 = new WordFragment(docx);
        textFragmentRow2Cell2.addText("12");
        valuesRow2Cell2.setValue(textFragmentRow2Cell2);

        OptionsTableData valuesRow2Cell3 = new OptionsTableData();
        WordFragment textFragmentRow2Cell3 = new WordFragment(docx);
        textFragmentRow2Cell3.addText("13");
        valuesRow2Cell3.setValue(textFragmentRow2Cell3);

        OptionsTableData valuesRow2Cell4 = new OptionsTableData();
        WordFragment textFragmentRow2Cell4 = new WordFragment(docx);
        textFragmentRow2Cell4.addText("14");
        valuesRow2Cell4.setValue(textFragmentRow2Cell4);

        valuesRow2.add(valuesRow2Cell1);
        valuesRow2.add(valuesRow2Cell2);
        valuesRow2.add(valuesRow2Cell3);
        valuesRow2.add(valuesRow2Cell4);

        ArrayList<OptionsTableData> valuesRow3 = new ArrayList<OptionsTableData>();

        OptionsTableData valuesRow3Cell1 = new OptionsTableData();
        WordFragment textFragmentRow3Cell1 = new WordFragment(docx);
        textFragmentRow3Cell1.addText("21");
        valuesRow3Cell1.setValue(textFragmentRow3Cell1);

        OptionsTableData valuesRow3Cell2 = new OptionsTableData();
        WordFragment textFragmentRow3Cell2 = new WordFragment(docx);
        textFragmentRow3Cell2.addText("22");
        valuesRow3Cell2.setValue(textFragmentRow3Cell2);

        OptionsTableData valuesRow3Cell3 = new OptionsTableData();
        WordFragment textFragmentRow3Cell3 = new WordFragment(docx);
        textFragmentRow3Cell3.addText("23");
        valuesRow3Cell3.setValue(textFragmentRow3Cell3);

        OptionsTableData valuesRow3Cell4 = new OptionsTableData();
        WordFragment textFragmentRow3Cell4 = new WordFragment(docx);
        textFragmentRow3Cell4.addText("24");
        valuesRow3Cell4.setValue(textFragmentRow3Cell4);

        valuesRow3.add(valuesRow3Cell1);
        valuesRow3.add(valuesRow3Cell2);
        valuesRow3.add(valuesRow3Cell3);
        valuesRow3.add(valuesRow3Cell4);

        ArrayList<OptionsTableData> valuesRow4 = new ArrayList<OptionsTableData>();

        OptionsTableData valuesRow4Cell1 = new OptionsTableData();
        WordFragment textFragmentRow4Cell1 = new WordFragment(docx);
        textFragmentRow4Cell1.addText("31");
        valuesRow4Cell1.setValue(textFragmentRow4Cell1);

        OptionsTableData valuesRow4Cell2 = new OptionsTableData();
        WordFragment textFragmentRow4Cell2 = new WordFragment(docx);
        textFragmentRow4Cell2.addText("32");
        valuesRow4Cell2.setValue(textFragmentRow4Cell2);

        OptionsTableData valuesRow4Cell3 = new OptionsTableData();
        WordFragment textFragmentRow4Cell3 = new WordFragment(docx);
        textFragmentRow4Cell3.addText("33");
        valuesRow4Cell3.setValue(textFragmentRow4Cell3);

        OptionsTableData valuesRow4Cell4 = new OptionsTableData();
        WordFragment textFragmentRow4Cell4 = new WordFragment(docx);
        textFragmentRow4Cell4.addText("34");
        valuesRow4Cell4.setValue(textFragmentRow4Cell4);

        valuesRow4.add(valuesRow4Cell1);
        valuesRow4.add(valuesRow4Cell2);
        valuesRow4.add(valuesRow4Cell3);
        valuesRow4.add(valuesRow4Cell4);

        ArrayList<OptionsTableData> valuesRow5 = new ArrayList<OptionsTableData>();

        OptionsTableData valuesRow5Cell1 = new OptionsTableData();
        WordFragment textFragmentRow5Cell1 = new WordFragment(docx);
        textFragmentRow5Cell1.addText("41");
        valuesRow5Cell1.setValue(textFragmentRow5Cell1);

        OptionsTableData valuesRow5Cell2 = new OptionsTableData();
        WordFragment textFragmentRow5Cell2 = new WordFragment(docx);
        textFragmentRow5Cell2.addText("42");
        valuesRow5Cell2.setValue(textFragmentRow5Cell2);

        OptionsTableData valuesRow5Cell3 = new OptionsTableData();
        WordFragment textFragmentRow5Cell3 = new WordFragment(docx);
        textFragmentRow5Cell3.addText("43");
        valuesRow5Cell3.setValue(textFragmentRow5Cell3);

        OptionsTableData valuesRow5Cell4 = new OptionsTableData();
        WordFragment textFragmentRow5Cell4 = new WordFragment(docx);
        textFragmentRow5Cell4.addText("44");
        valuesRow5Cell4.setValue(textFragmentRow5Cell4);

        valuesRow5.add(valuesRow5Cell1);
        valuesRow5.add(valuesRow5Cell2);
        valuesRow5.add(valuesRow5Cell3);
        valuesRow5.add(valuesRow5Cell4);

        ArrayList<OptionsTableData> valuesRow6 = new ArrayList<OptionsTableData>();

        OptionsTableData valuesRow6Cell1 = new OptionsTableData();
        WordFragment textFragmentRow6Cell1 = new WordFragment(docx);
        textFragmentRow6Cell1.addText("51");
        valuesRow6Cell1.setValue(textFragmentRow6Cell1);

        OptionsTableData valuesRow6Cell2 = new OptionsTableData();
        WordFragment textFragmentRow6Cell2 = new WordFragment(docx);
        textFragmentRow6Cell2.addText("52");
        valuesRow6Cell2.setValue(textFragmentRow6Cell2);

        OptionsTableData valuesRow6Cell3 = new OptionsTableData();
        WordFragment textFragmentRow6Cell3 = new WordFragment(docx);
        textFragmentRow6Cell3.addText("53");
        valuesRow6Cell3.setValue(textFragmentRow6Cell3);

        OptionsTableData valuesRow6Cell4 = new OptionsTableData();
        WordFragment textFragmentRow6Cell4 = new WordFragment(docx);
        textFragmentRow6Cell4.addText("54");
        valuesRow6Cell4.setValue(textFragmentRow6Cell4);

        valuesRow6.add(valuesRow6Cell1);
        valuesRow6.add(valuesRow6Cell2);
        valuesRow6.add(valuesRow6Cell3);
        valuesRow6.add(valuesRow6Cell4);

        ArrayList<ArrayList<OptionsTableData>> valuesTable = new ArrayList<ArrayList<OptionsTableData>>();
        valuesTable.add(valuesRow1);
        valuesTable.add(valuesRow2);
        valuesTable.add(valuesRow3);
        valuesTable.add(valuesRow4);
        valuesTable.add(valuesRow5);
        valuesTable.add(valuesRow6);

        HashMap<String, Boolean> conditionalFormatting = new HashMap<String, Boolean>();
        conditionalFormatting.put("firstRow", true);
        conditionalFormatting.put("lastCol", true);
        conditionalFormatting.put("lastRow", true);

        OptionsTableProperties tableProperties = new OptionsTableProperties();
        tableProperties.setTableStyle("myTableStyle")
                       .setConditionalFormatting(conditionalFormatting);

        docx.addTable(valuesTable, tableProperties);

        docx.createDocx("output");
    }
}

The resulting Word document looks like:
